Registering the Card Reader in Newer Devices

To register a USB card reader on the printing device’s touch panel:

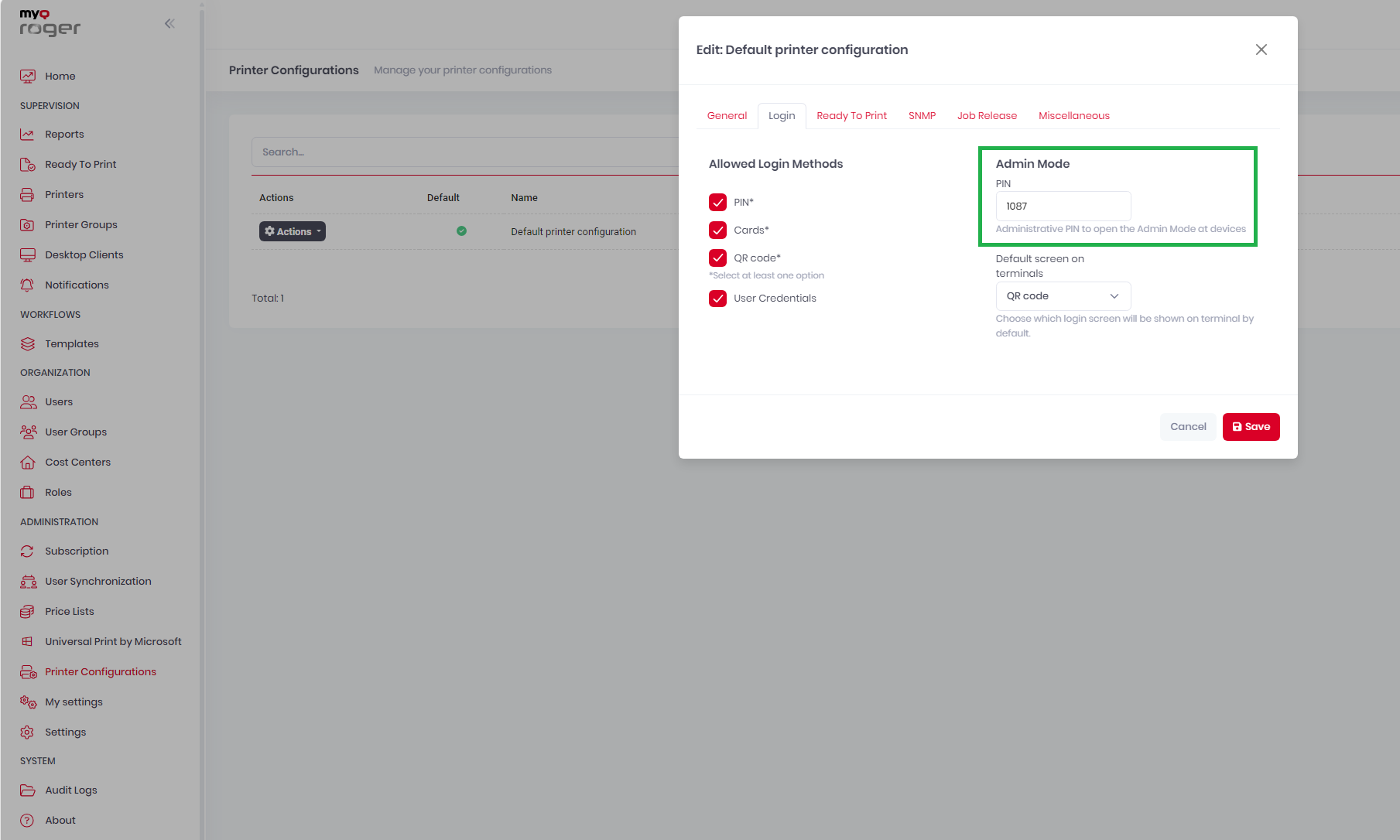

  1. Log in as an admin, go to Printer Configurations then Actions>Edit>Login to find the Admin PIN in the MyQ Roger Web UI.


  1. Enter the Admin PIN on the terminal and then press and hold the MyQ Roger logo.

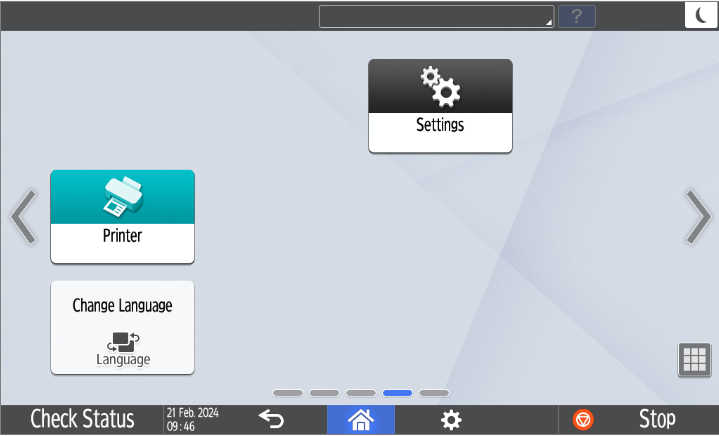

  2. Find the Settings button on the Ricoh screen and tap it to open the settings.

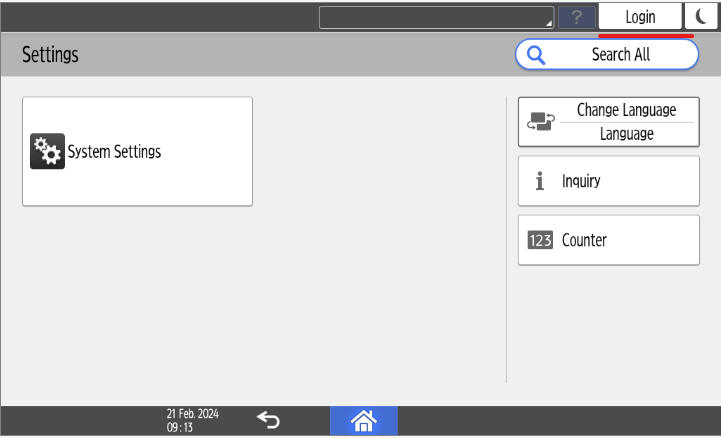

  1. Tap Login at the top of the screen.

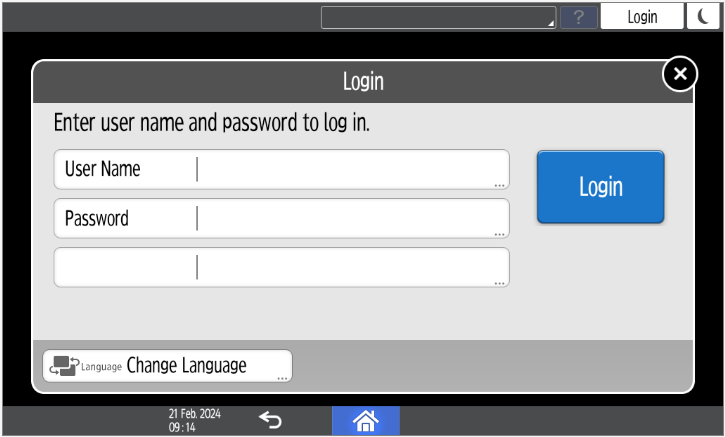

  1. Enter the device administrator’s username and password and tap Login.

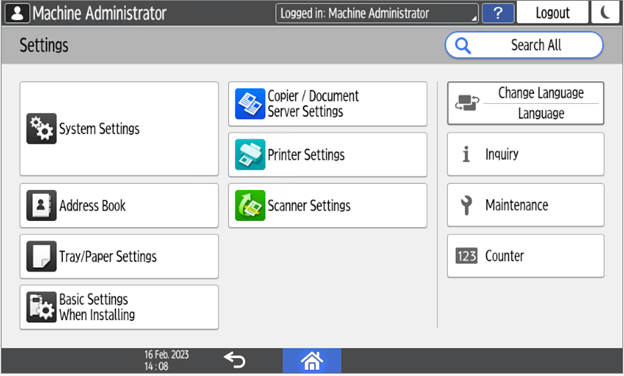

  1. Tap System settings.

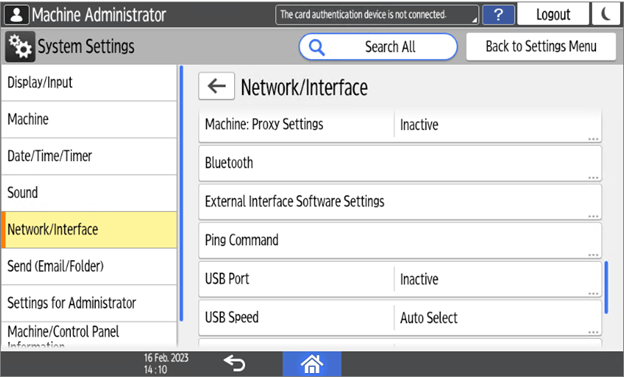

  1. Select Network/Interface on the left-side menu and then tap External Interface Software Settings.

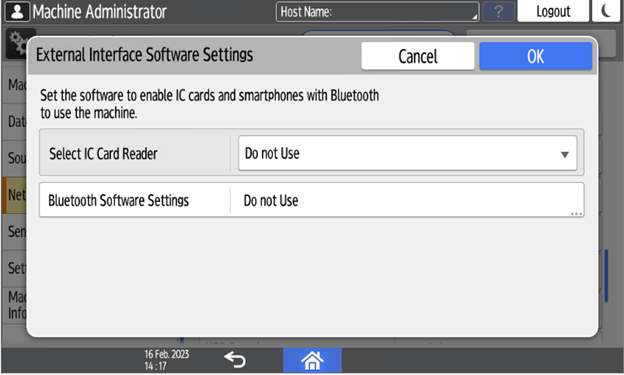

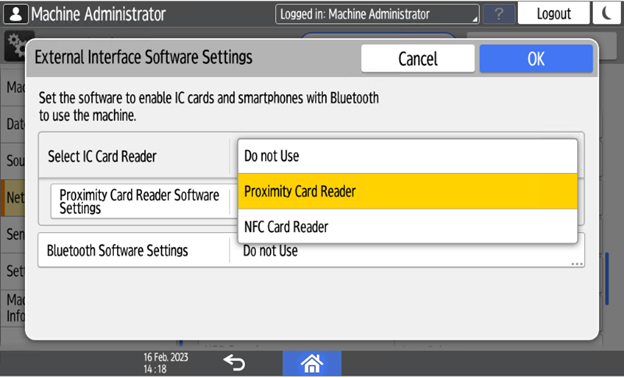

  1. In the Select IC Card Reader field, tap on Do not use to open the drop-down menu.


  1. And then select Proximity Card Reader from the drop-down.

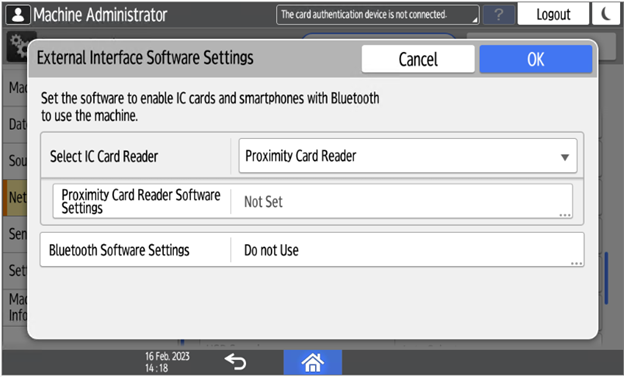

  1. In Proximity Card Reader Software Settings, select Not Set.

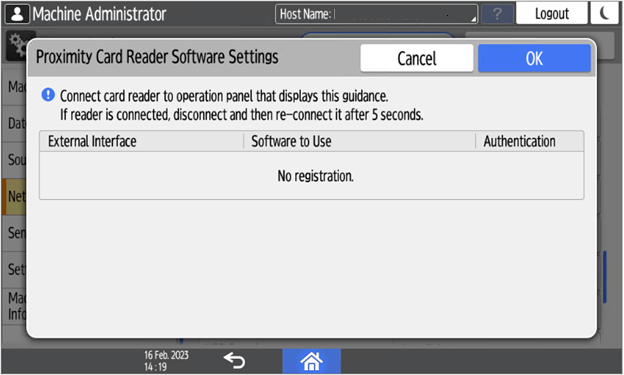

  1. Connect the card reader when this screen is displayed:

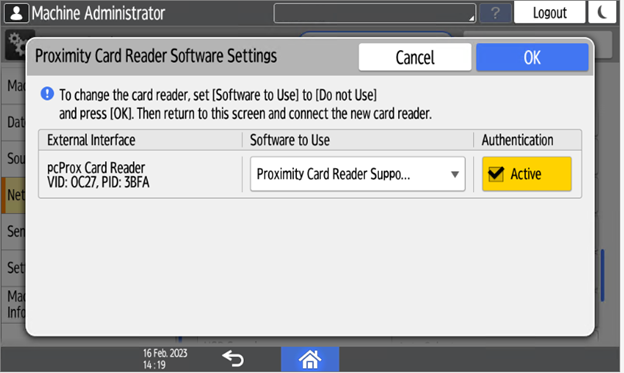

  1. Confirm the settings and tap OK.


  1. Restart the device.

  2. Add the card reader's Vendor ID and Product ID to the USB device list on the printing device’s Web UI.
