Using MyQ Roger

Usage of the Terminal

Please note that a device with MyQ Roger connected to the Kyocera command center must be synchronized at least once per month. If it’s not used for more than 30 days, you will receive the following error message on the device: “This app has been disabled. The product could not access security web services for at least 30 days, or the app is no longer approved by security web services. Contact support.” If this happens, MyQ Roger must be reinstalled.

Log in

Depending on the administrator’s setup, there are multiple login options available on the device panel:

  • Username and password - Type your MyQ Roger username and password.

  • Username and PIN - Type your MyQ Roger username PIN.

  • ID Card - Swipe your ID Card.

  • PIN - Type your MyQ Roger PIN.

  • QR code - Scan the QR code with your smart phone via the MyQ Roger mobile app (recommended).

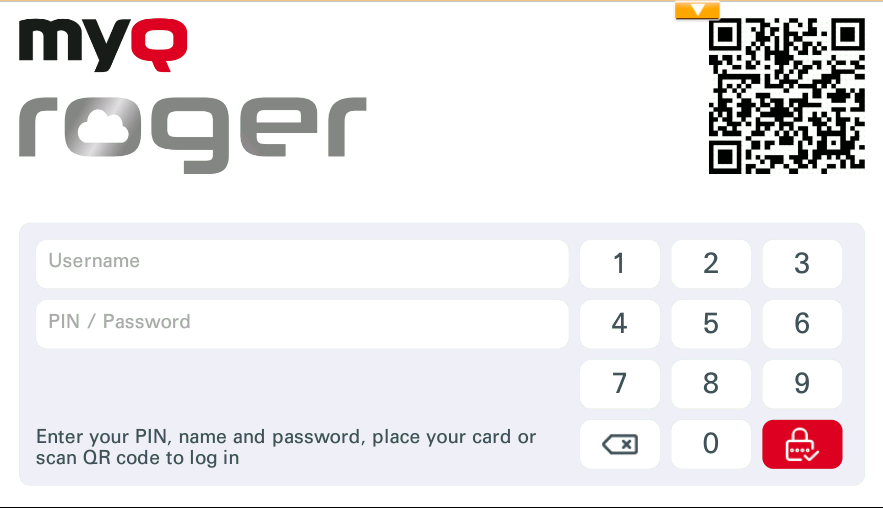

username password pin card QR-20250305-082053.png

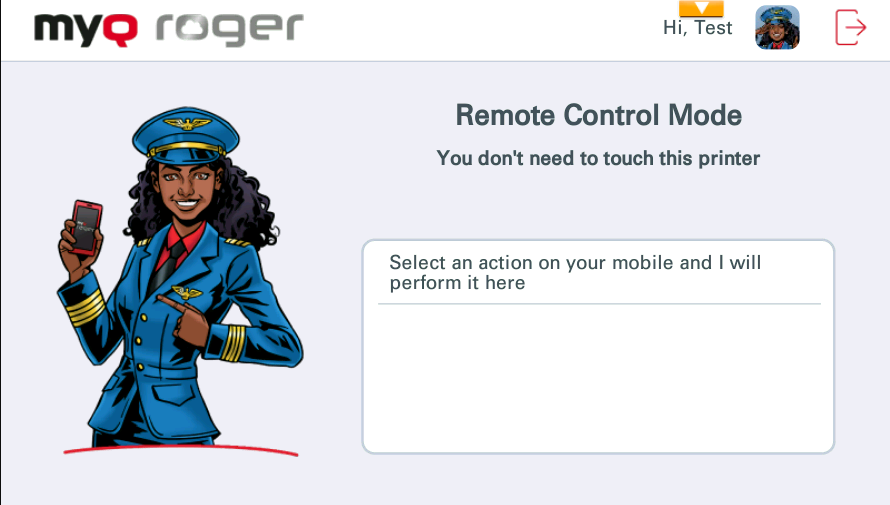

If you log in by scanning the QR with your smartphone, you can manage everything via the MyQ Roger app. You cannot use the device panel unless you pass the control to the printer, via the button on the top-right corner in the MyQ Roger mobile app Home tab.

remote control mode-20250305-082054.png

The currently running operation is displayed on the MFD’s display if the device is managed via the MyQ Roger app. If you use a different login method, you can manage everything directly from the MFD.



MyQ Roger Available Actions

Depending on your MyQ Roger tenant settings, as well as the administrator’s setup, the available actions are:

  • Ready to Print

  • OneDrive and Scan Here (OneDrive)

  • Google Drive and Scan Here (Google Drive)

  • SharePoint and Scan Here (SharePoint)

  • MS Teams and Scan Here (MS Teams)

  • Universal Print

Ready to Print

This action shows all the jobs that are in the ready state.

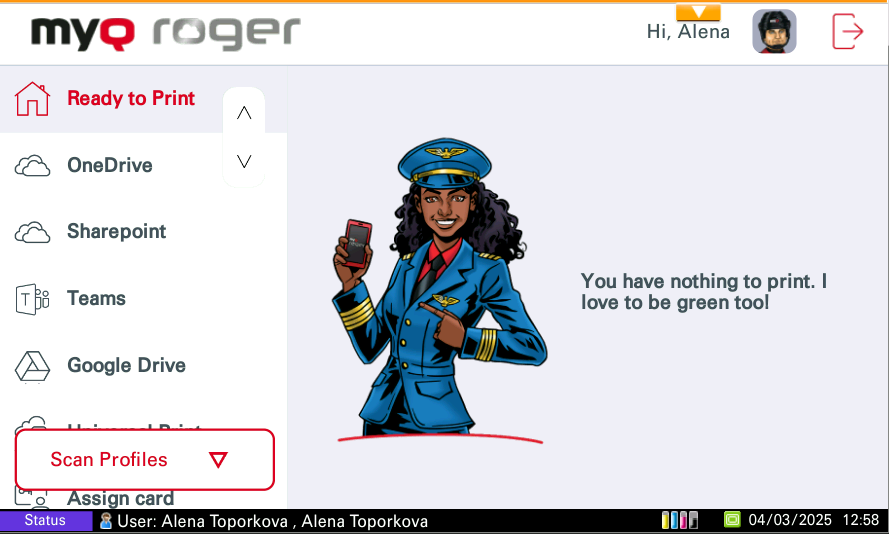

R2P nothing 2 print-20250305-082054.png

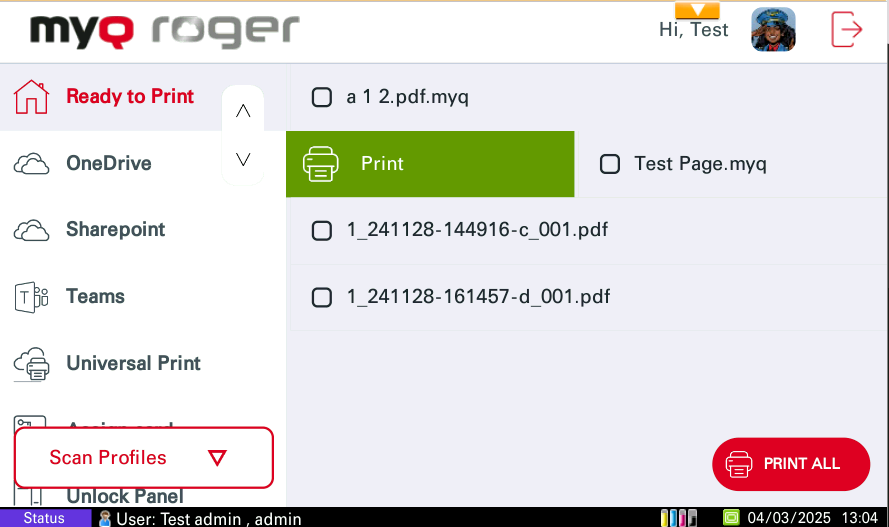

  1. If the control is to the printer, select a job or multiple jobs and swipe from left to right to print it.

    R2P PRINT-20250305-082054.png

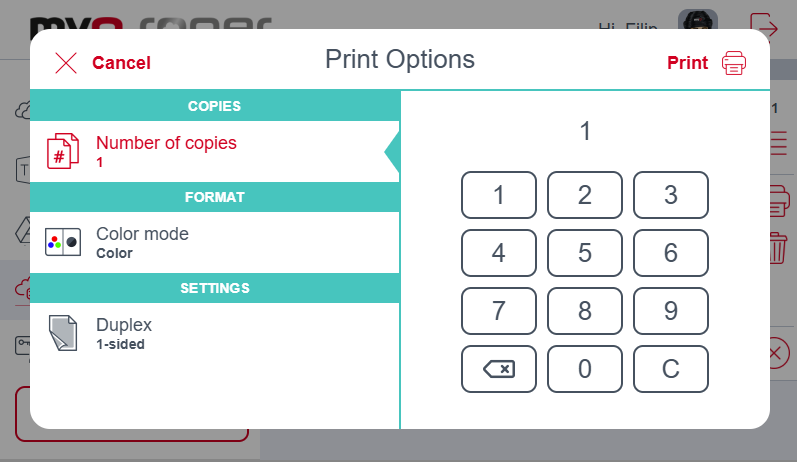

  2. Once you have selected the relevant files to print, Print Options will be displayed.

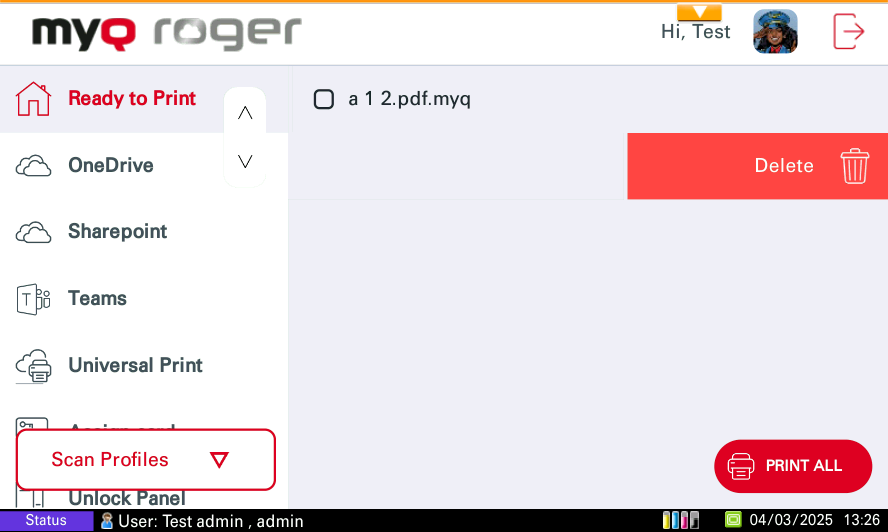

  3. If you swipe from right to left, the job is deleted.

    R2P DELETE option-20250305-082054.png
  4. If it’s on the mobile app, you have the same swiping options or else you can select the job(s) and tap Print or Print All.

OneDrive

This action is displayed if OneDrive is connected or if no cloud storage is connected at all. This action shows all the files that can be printed and stored on OneDrive.

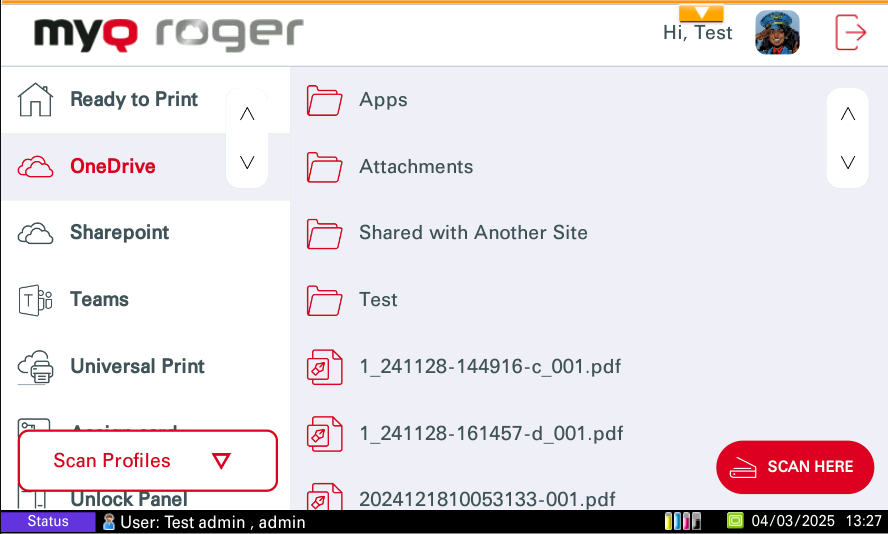

  1. If the control is to the printer, select a job and swipe from left to right to print it or just tap on the job to edit the job options.

    R2P onedrive folders files-20250305-082054.png

It is not recommended to use login via the PIN method for displaying the cloud storage files on the device panel because of security reasons. Currently there are two possibilities of behavior after login via PIN related to settings on the MyQ Roger Web UI. This behavior is related to the PIN login method only. Login via username and password, card or via mobile device is working without any limitations.

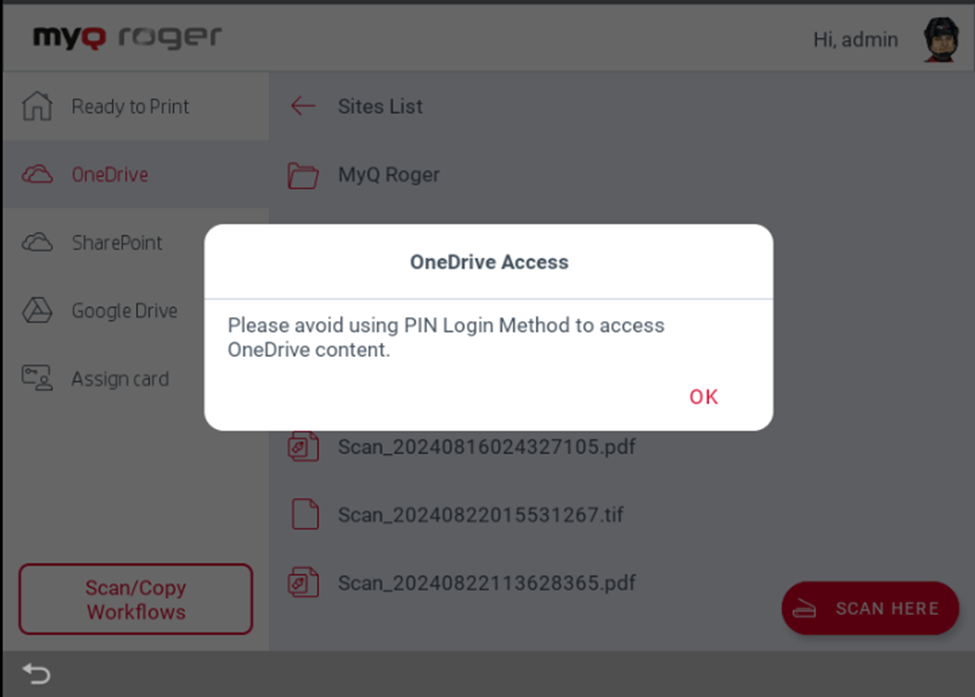

  1. An information message is displayed after opening the OneDrive storage. After pressing OK on this message, the OneDrive storage is displayed, and it is possible to browse the OneDrive folders and files.

    OneDrive Access

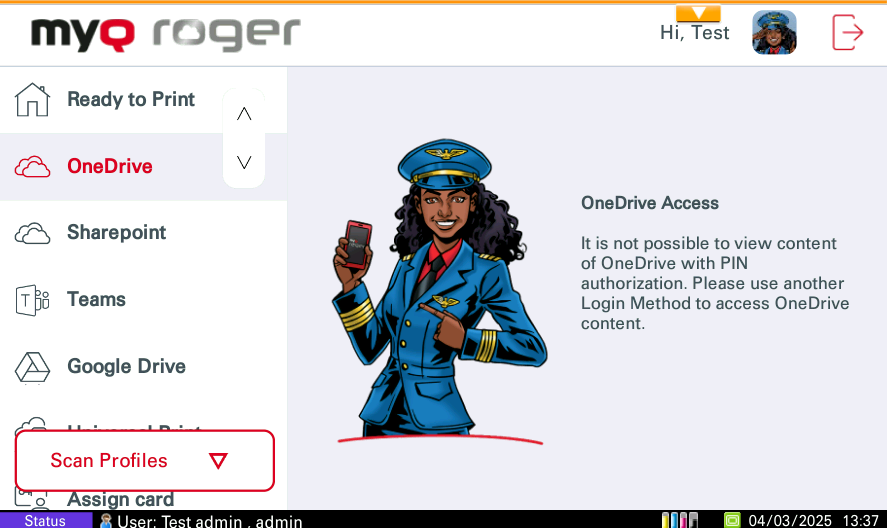

  2. OneDrive storage files are not displayed at all.

    OneDrive access not possible to view-20250305-082054.png

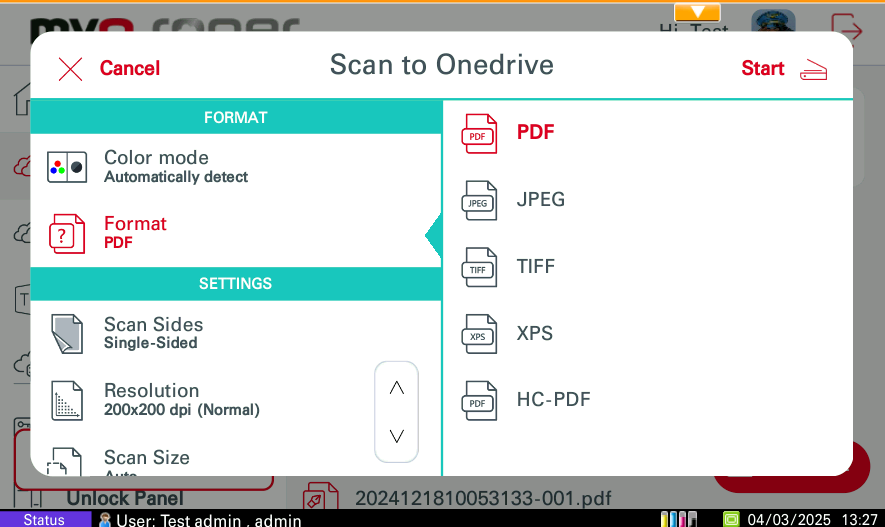

Scan Here (OneDrive)

The Scan Here feature scans your documents and saves the scans to OneDrive.

  1. If the control is on the mobile app, select the job (listed in the OneDrive tab) and tap Print or Print All. It is possible to print files in pdf, MS Office and Google Docs formats only on Kyocera from OneDrive storage.

    Scan 2 OneDrive-20250305-082054.png

Google Drive

This action is displayed if Google Drive is connected or if no cloud storage is connected at all. This action shows all the files that can be printed and stored on Google Drive.

  1. If the control is to the printer, select a job and swipe from left to right to print it, or just tap on the job to edit the job options.

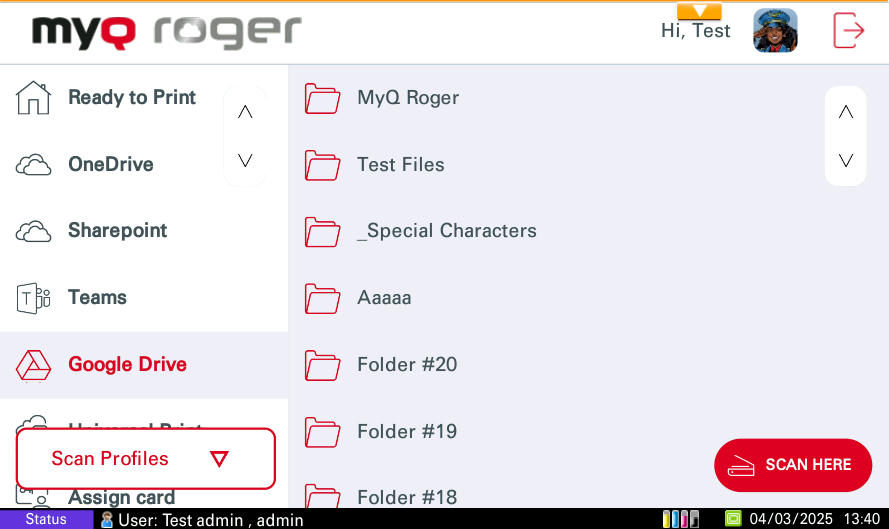

    Google Drive folders-20250305-082054.png

It is not recommended to use login via the PIN method for displaying the cloud storage files on the device panel because of security reasons. Currently, there are two possibilities of behavior after login via PIN related to settings on the MyQ Roger Web UI. This behavior is related to the PIN login method only. Login via username and password, card, or via mobile device is working without any limitations.

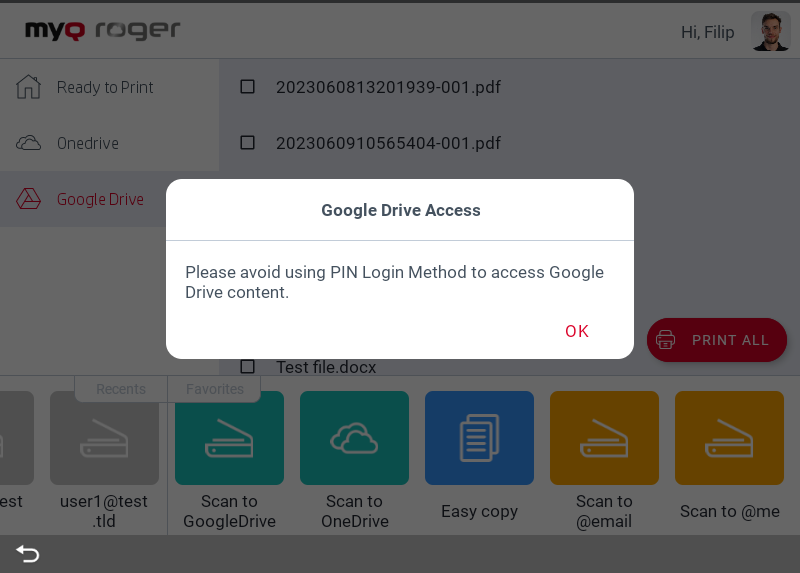

  1. An information message is displayed after opening the Google Drive storage. After pressing OK on this message, the Google Drive storage is displayed and it is possible to browse the Google Drive folders and files.

    Google Drive access
  2. Google Drive storage files are not displayed at all.

    Google Drive access not possible to view-20250305-082054.png

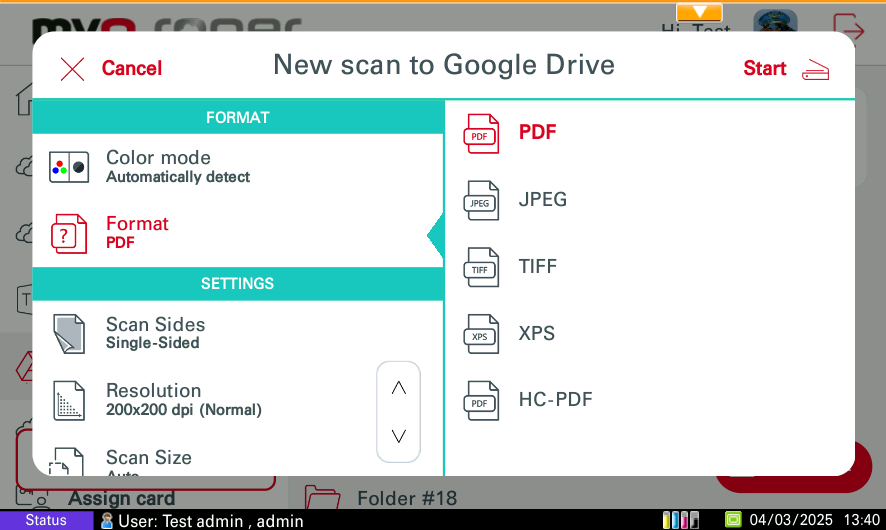

Scan Here (Google Drive)

The Scan here feature scans your documents and saves the scans to Google Drive.

  1. If the control is on the mobile app, select the job (listed in the Google Drive tab) and tap Print or Print All. It is possible to print files in PDF format only on Kyocera from Google Drive.

    New Scan to Google Drive-20250305-082054.png

SharePoint

This action is displayed if SharePoint is connected or if no cloud storage is connected at all. This action shows all the files that can be printed and stored on SharePoint.

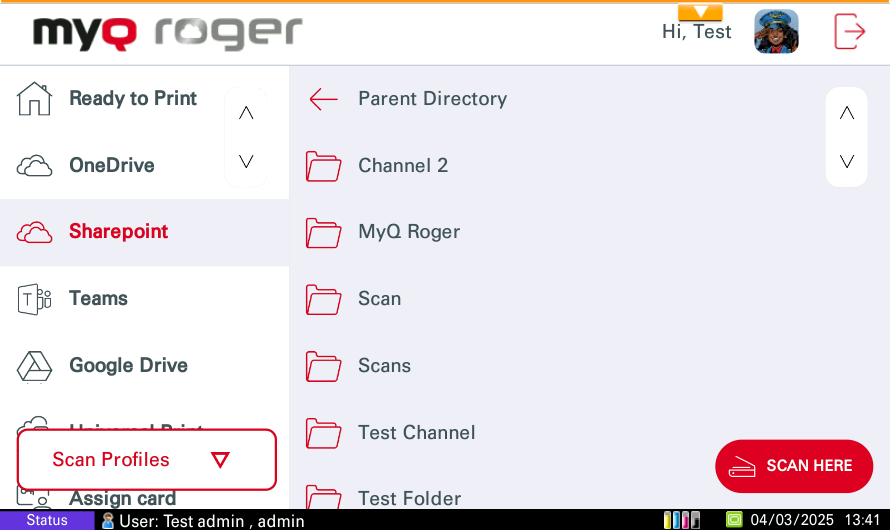

  1. If the control is to the printer, select a job and swipe from left to right to print it or just tap on the job to edit the job options.

    SharePoint folders-20250305-082054.png

It is not recommended to use login via the PIN method for displaying the cloud storage files on the device panel because of security reasons. Currently, there are two possibilities of behavior after login via PIN related to settings on the MyQ Roger Web UI. This behavior is related to the PIN login method only. Login via username and password, card, or via mobile device is working without any limitations.

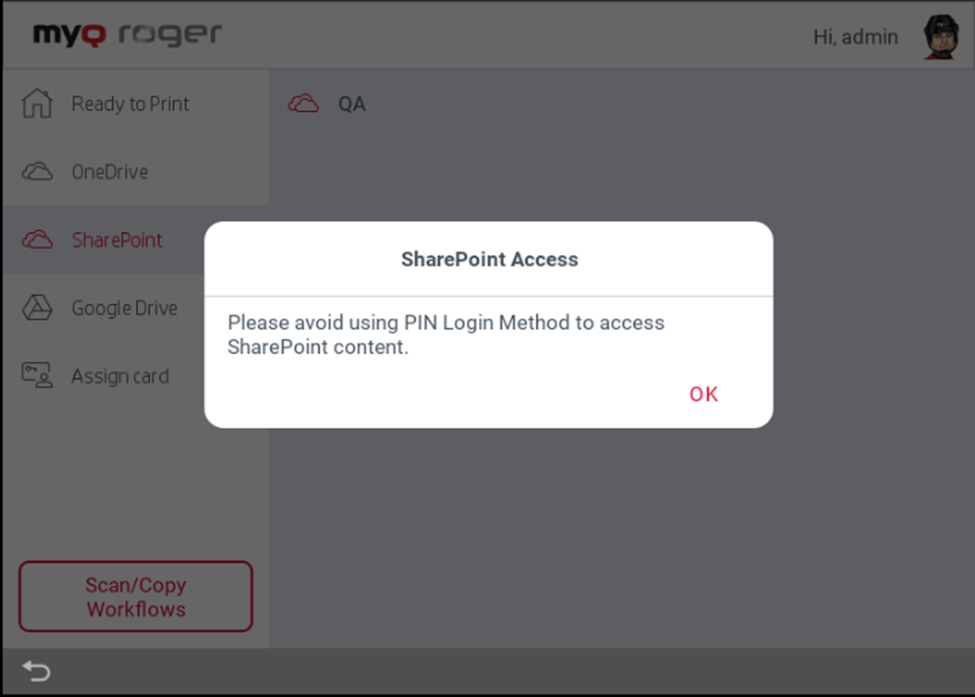

  1. An information message is displayed after opening the SharePoint storage.

    SharePoint access

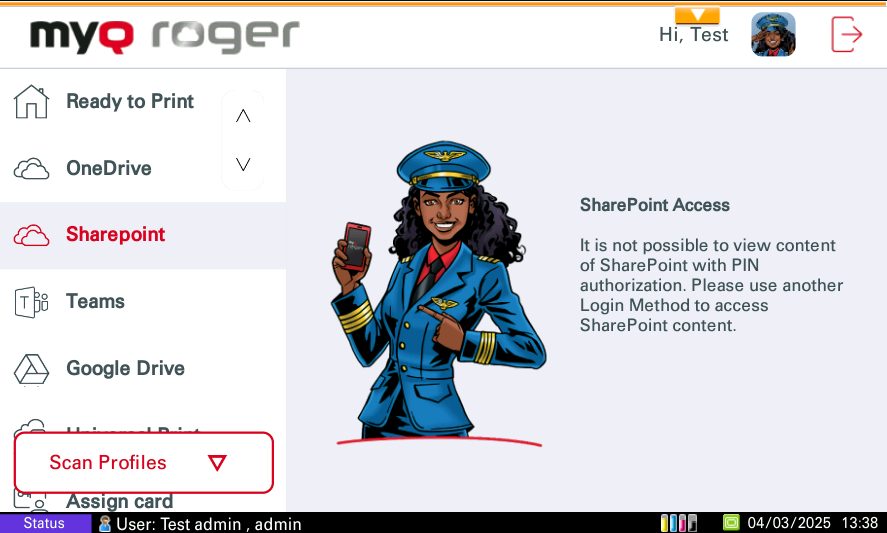

  2. After pressing OK on this message, the SharePoint storage is displayed and it is possible to browse the SharePoint folders and files. SharePoint storage files are not displayed at all.

    SharePoint access not possible to view-20250305-082054.png
Scan here (SharePoint)

The Scan here feature scans your documents and saves the scans to SharePoint.

  1. If the control is on the mobile app, select the job (listed in the SharePoint tab) and tap Print or Print All. It is possible to print files in PDF, MS Office and Google Docs formats only on Kyocera from Sharepoint storage.

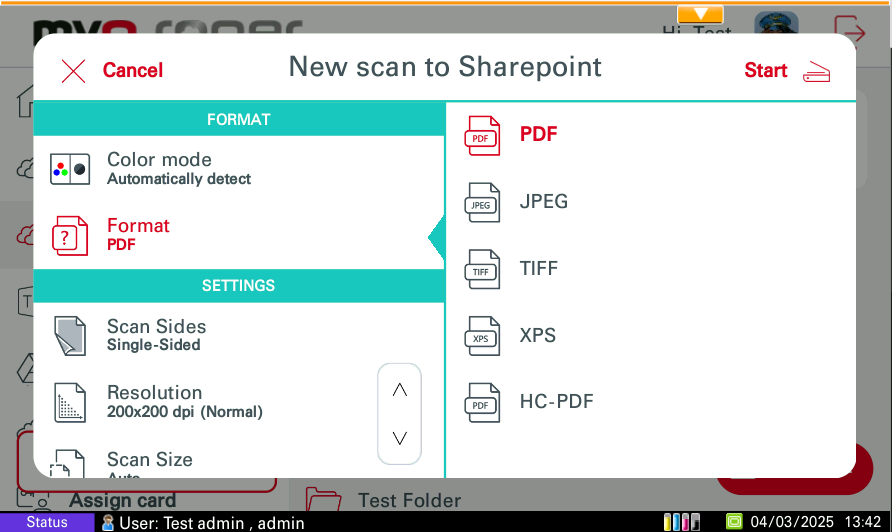

    New Scan to SharePoint-20250305-082054.png

MS Teams

This action is displayed if MS Teams is connected or if no cloud storage is connected at all. This action shows all files that can printed from or scanned to your channels in MS Teams.

  1. If the control is to the printer, select a job and swipe from left to right to print it or just tap on the job to edit the job options.

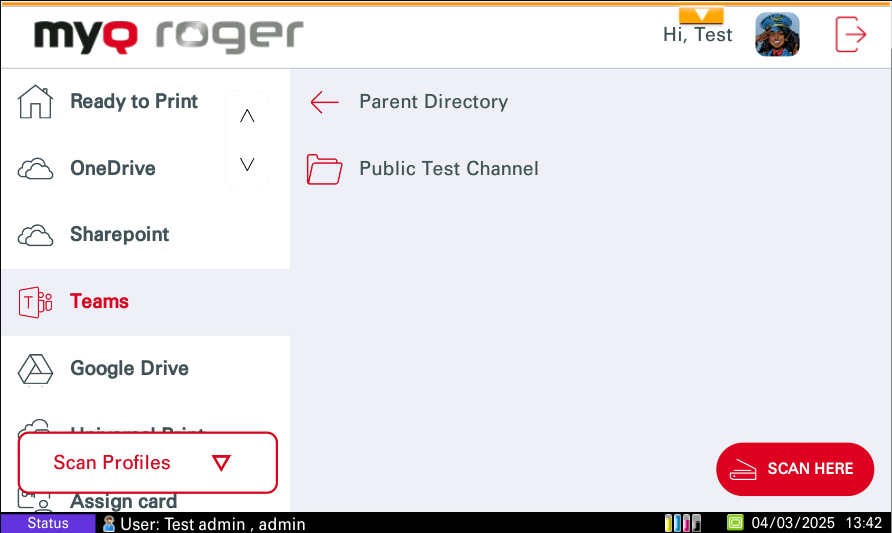

    Teams folders-20250305-082054.png

It is not recommended to use login via the PIN method for displaying the cloud storage files on the device panel because of security reasons. Currently, there are two possibilities of behavior after login via PIN related to settings on the MyQ Roger Web UI. This behavior is related to the PIN login method only. Login via username and password, card, or via mobile device is working without any limitations.

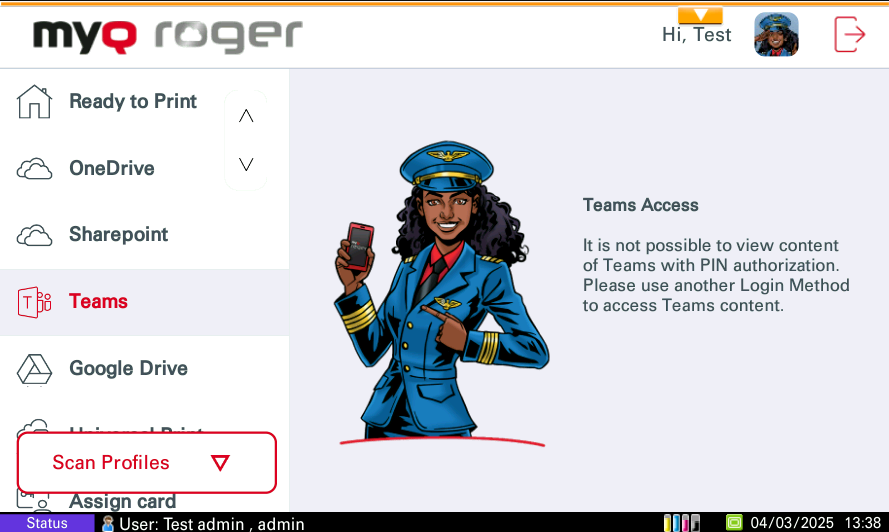

  1. An information message is displayed after opening the MS Teams storage.

    Teams access not possible to view-20250305-082054.png
  2. After pressing OK on this message, the MS Teams storage is displayed, and it is possible to browse the MS Teams folders and files. By default, only Channels that are followed by the user are listed. MS Teams storage files are not displayed at all.

Scan Here (MS Teams)

The Scan here feature scans your documents and saves the scans to MS Teams in the specified channel.

  1. If the control is on the mobile app, select the job (listed in the MS Teams tab) and tap Print or Print All. It is possible to print files in PDF, MS Office and Google Docs formats only on Kyocera from MS Teams storage.

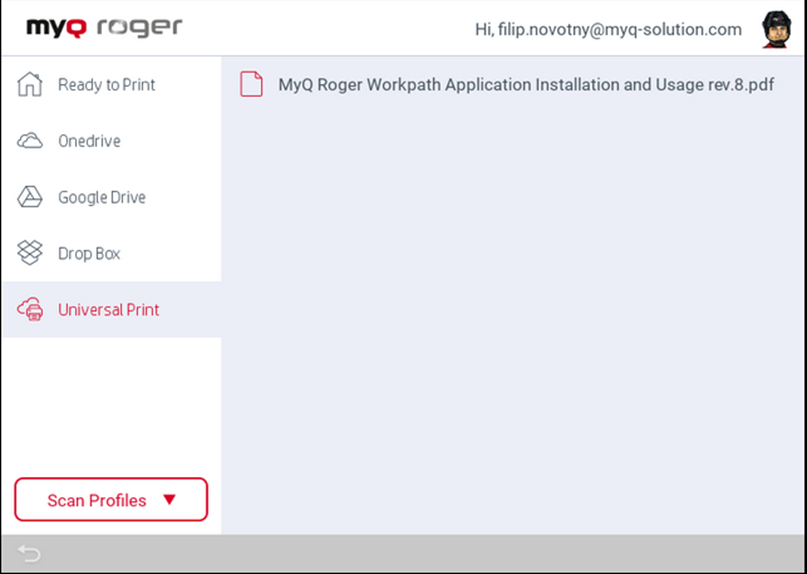

Universal Print

This action is displayed only if a Universal Print printer is connected. This action shows all the jobs that can be printed from Universal Print.

Universal Print

Once a job has been selected for print the Print Options are displayed.


Assign card

After tapping this action, the ID Card registration screen opens, and the logged user can register their card by swiping it at the card reader.

User Workflows

At the bottom of the screen, there are the Recent and Favorite actions. The recent actions are the last actions performed on MyQ Roger, and the favorite actions can be edited on the MyQ Roger mobile app or by pressing the action on the device panel.

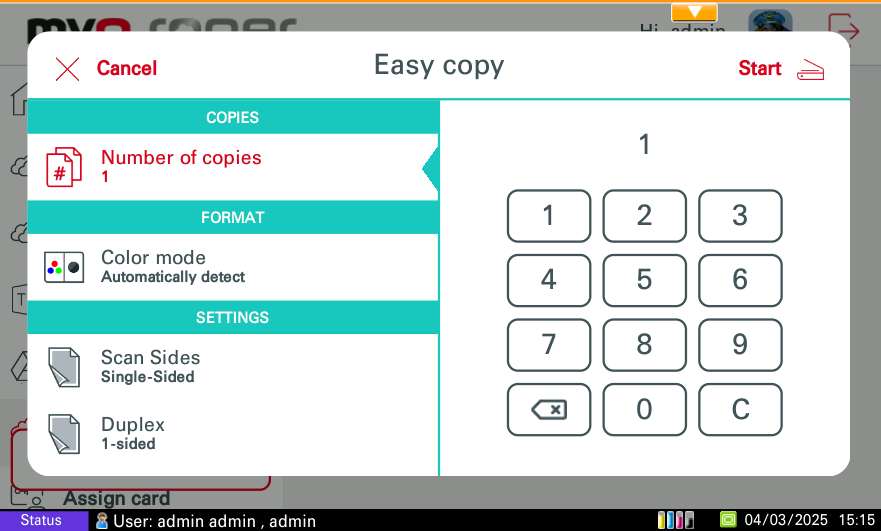

Easy Copy

Tap to copy a job or press to display the parameters.

Easy copy number keypad-20250305-082054.png

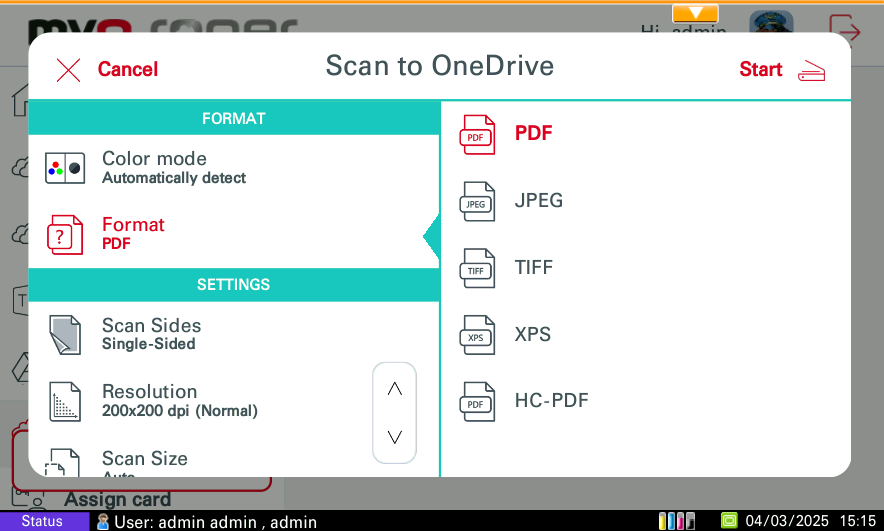

Scan to OneDrive

Tap to scan a job and store it in your OneDrive or press to display the parameters.

Scan to OneDrive-20250305-082054.png

Scan to Google Drive

Tap to scan a job and store it in your Google Drive or press to display the parameters.

Scan to Google Drive-20250305-082054.png

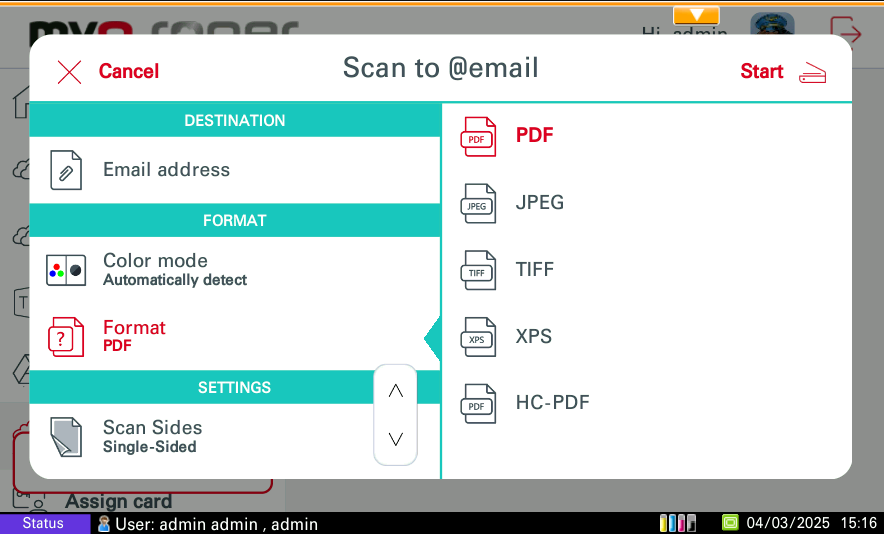

Scan to @me or Scan to @email

Tap to scan a job and send it to your email address/any other email address or press to display the parameters.

Scan to at email-20250305-082054.png
