Installation on HyPAS MFDs

The MyQ Roger app can be installed on HyPAS MFDs as a standard application. It is done via uploading the installation file from a USB flash drive and installing the application on the device’s system menu.

  1. Save the installation file (KyoEmbedded_2023.xx.xx.x_Roger_EU.pkg for the EU region or KyoEmbedded_2023.xx.xx.x_Roger_US.pkg for the US region) to the root directory of a USB Flash drive.

  2. Install the file on the printing device:

    1. On the device operation panel, press the System Menu button (or System Menu/Counter button on some devices). The System Menu opens.

    2. On the System Menu, find and tap Application (Favorites/Application on some devices). You are prompted to log in as an administrator.

    3. Log in as the administrator. The Application menu (or Favorites/Application menu) opens. If there is a card reader connected to the device and activated, you are asked to use your ID card. In such cases, tap Menu at the bottom-left corner of the screen, and then tap keyboard login. If the Menu button is not displayed, press the System Menu button (or System Menu/Counter) on the device operation panel; the terminal screen refreshes with the button displayed. In case you are asked to select between the Local login and the Network login, select Local before entering the credentials.

    4. On the Application menu (or Favorites/Application menu), tap Application. The Application sub-menu opens.

    5. Insert the USB Flash drive with the uploaded installation file, and then tap the plus sign (+) (or Add on some devices) at the upper-right corner of the screen. A dialog box appears, informing about the number of applications that can be installed.

    6. Tap OK. The Add-Application menu opens with the MyQ Roger item displayed.

    7. Select the MyQ Roger item, tap Install at the bottom-left corner of the screen, and then tap Yes to confirm the installation. The Completed message appears and the Add - Application menu is empty. You can tap Remove Memory at the bottom of the screen to safely remove your USB flash drive.

    8. Back on the Add - Application menu, tap End.

  3. To activate the application, go back to the Application menu, select the MyQ Roger item, and then tap Menu at the bottom-left corner. The application menu opens.

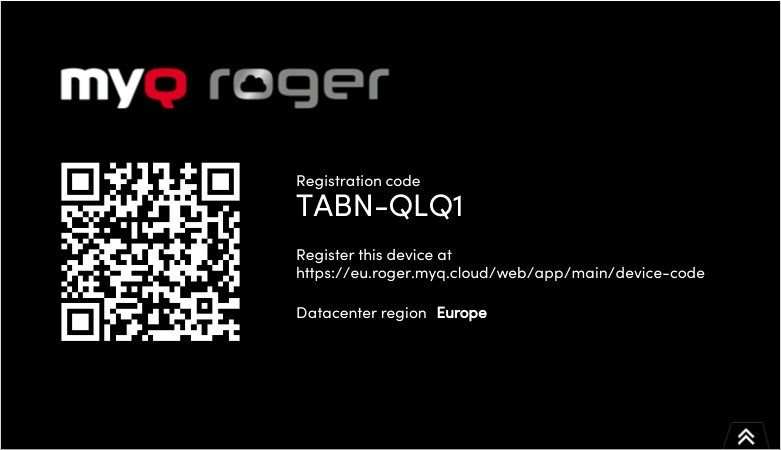

    1. On the menu, tap Activate, and then tap Yes to confirm the activation. The QR code is displayed on the device panel.

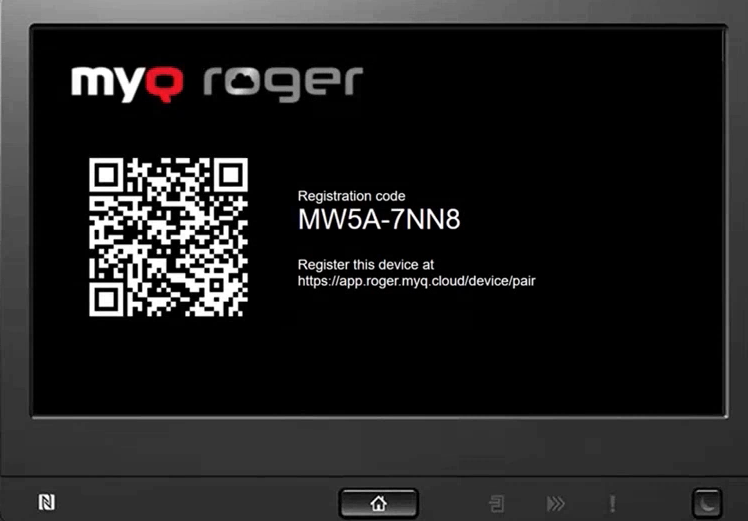

Device panel - QR code and registration code

Most printing devices cannot read flash drives formatted in the NTFS file system. Therefore, it might be necessary to use a USB flash drive formatted to FAT32.
